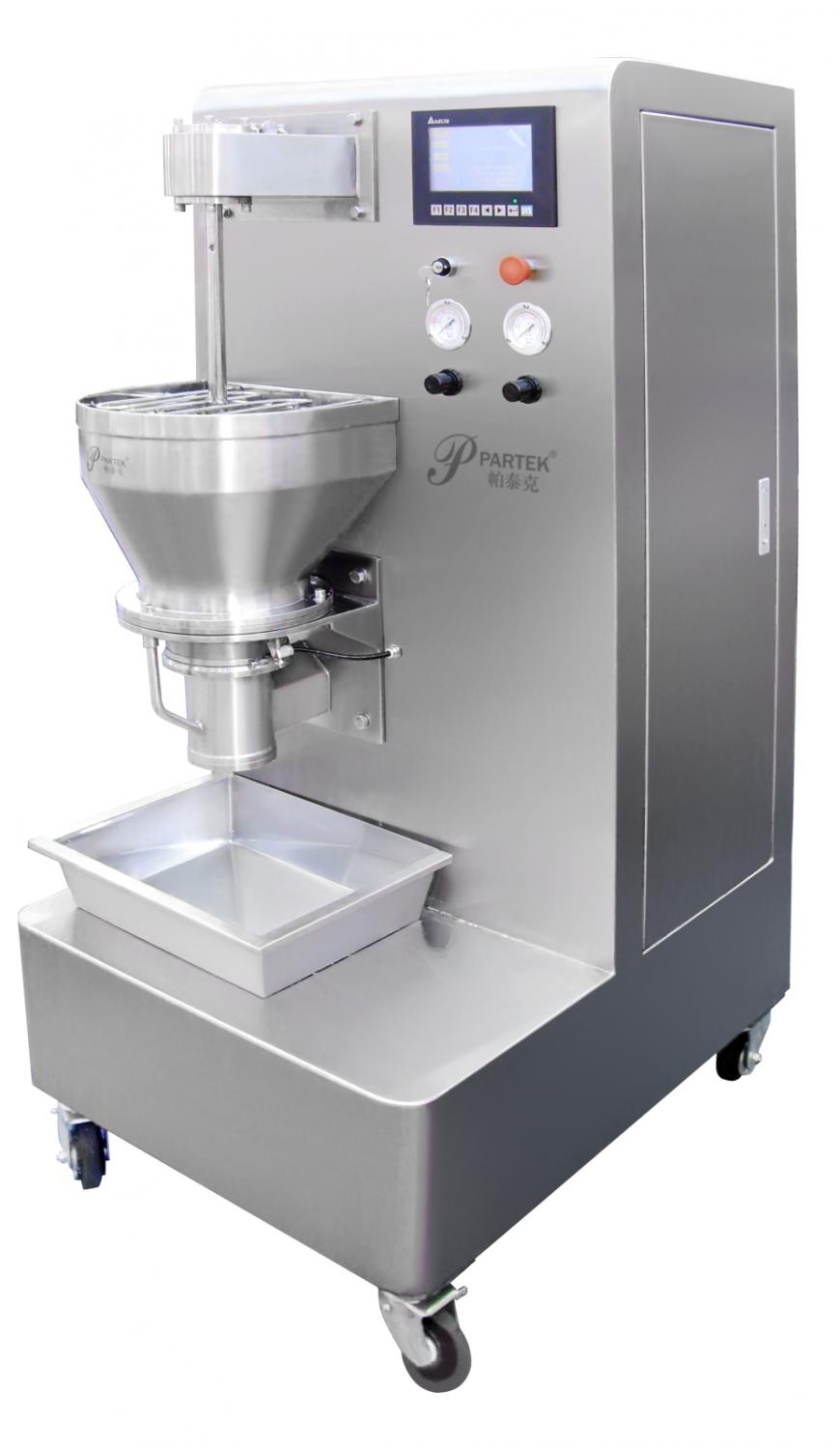

LXJ Vertical Rotary Extruder

  • Wet mass — a homogeneous blend of powder raw materials, excipients, and liquid binders — is continuously fed into the extrusion chamber via a rotary feeder. Driven by the ram extruder, the wet mass is forced through the screen die to produce dense cylindrical extrudates of variable lengths.
  • Hotline: + 86-23-68276255
Detail

Product has registered national patent (Application No.: 2010201540377), and counterfeiting is prohibited!

Introduction

Wet mass — a homogeneous blend of powder raw materials, excipients, and liquid binders — is continuously fed into the extrusion chamber via a rotary feeder. Driven by the ram extruder, the wet mass is forced through the screen die to produce dense cylindrical extrudates of variable lengths.

Features

1.Continuous high-efficiency operation: sustained processing with zero downtime for optimal throughput.

2.Uniform extrusion and superior density: consistent product integrity with >95% yield rate.

3.Zero-thermal-sensitivity advantage: eliminates material heating during extrusion (vs. screw extruders).Ideal for heat-sensitive compounds; no cooling required.Prevents screen die rupture (common in twin-screw systems).

4.Intelligent safety protection: integrated overload cutoff and emergency stop functions.

5.Interchangeable screen dies: extrudate diameter range: 0.5–3.0 mm (cylindrical strands).

Technical Parameter

Item|Unit\Model

LXJ-40

LXJ-80

LXJ-120

LXJ-150

LXJ-200

LXJ-300

LXJ-400

Min. Batch Size

Kg

0.15

0.3

0.5

0.5

1

2

2

Throughput (Ø0.8mm)

Kg/h

≤50

≤80

≤120

≤150

≤260

≤360

≤500

Die Aperture

mm

Φ0.4~3.0

Φ0.5~3.0

Φ0.5~3.0

Φ0.5~3.0

Φ0.5~3.0

Φ0.6~3.0

Φ0.6~3.0

Power Supply

V/Hz

380/50

Rotation speed

RPM

5~95

Material yield

%

≥99%

Noise Level

dB

<45

<45

<45

<60

<60

<60

<60

Dimension

L*W*H

cm

86×70×160

95×80×160

135×100×162

135×110×162

150×110×165

165×115×165

160×120×165

Net weight

Kg

380

600

800

1000

1200

1500

1800
